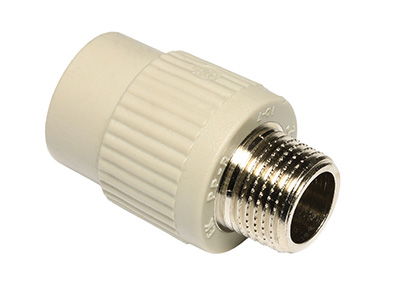

Ниппель РР наружная резьба
Предназначен для присоединения к внутренней резьбе металлического трубопровода.

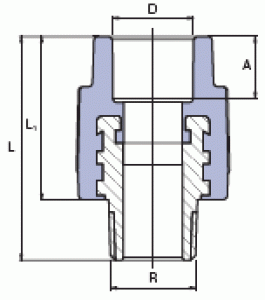

код | A [mm] |
D [mm] | L [mm] |
L1 [mm] |
R | |
---|---|---|---|---|---|---|
SZE01620XX | 13,0 | 16 | 52,0 | 38,0 | 1/2'' | |
SZE02020XX | 14,5 | 20 | 53,5 | 40,0 | 1/2'' | |
SZE02025XX | 14,5 | 20 | 58,0 | 40,0 | 3/4'' | |
SZE02520XX | 16,0 | 25 | 55,5 | 41,0 | 1/2'' | |
SZE02525XX | 16,0 | 25 | 59,0 | 41,0 | 3/4'' | |
SZE03225XX | 18,0 | 32 | 60,0 | 44,0 | 3/4'' | |
SZE03232XX | 18,0 | 32 | 62,5 | 42,0 | 1'' | |
с многогранником (8) | ||||||
SZE03232OK | 18,0 | 32 | 69,5 | 43,0 | 1'' | |
SZE04040XX | 20,5 | 40 | 80,0 | 49,0 | 5/4'' | |
SZE05050XX | 23,5 | 50 | 81,6 | 52,0 | 6/4'' | |
SZE06363XX | 27,5 | 63 | 101,0 | 60,0 | 2'' |
