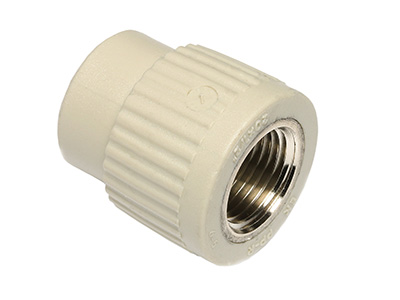

Муфта РР с внутренней резьбой
Предназначен для присоединения к внешней резьбе металлического трубопровода.

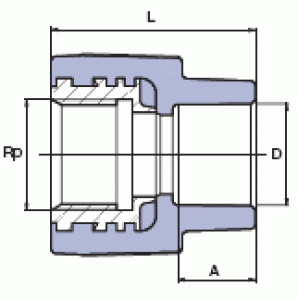

код | A [mm] |
D [mm] | L [mm] |
Rp | |
---|---|---|---|---|---|
SZI01620XX | 13,0 | 16 | 38,0 | 1/2'' | |
SZI02020XX | 14,5 | 20 | 39,0 | 1/2'' | |
SZI02025XX | 14,5 | 20 | 42,0 | 3/4'' | |
SZI02520XX | 16,0 | 25 | 40,5 | 1/2'' | |
SZI02525XX | 16,0 | 25 | 47,0 | 3/4'' | |
с многогранником (8) | |||||
SZI03225XX | 18,0 | 32 | 45,0 | 3/4'' | |
SZI03232OK | 18,0 | 32 | 57,0 | 1'' | |
SZI04040XX | 20,5 | 40 | 65,0 | 5/4'' | |
SZI05050XX | 23,5 | 50 | 69,0 | 6/4'' | |
SZI06363XX | 27,5 | 63 | 76,0 | 2'' |
